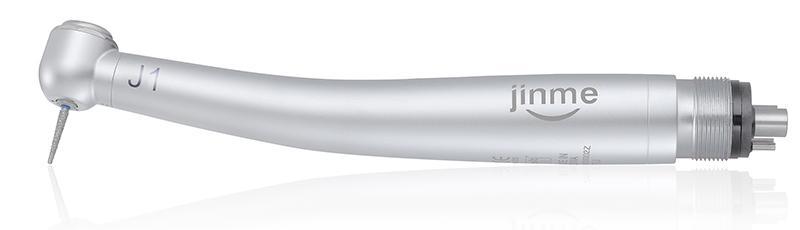

J1-SU High Speed Dental Handpiece, Dental Drill

Configuration parameters
Standard pressure: 0.28Mpa-0.3Mpa
Connection: four holes
Speed: 280000r/min -360000r/min
Head size: Φ12.4mm X H13.8mm
Bur size: shank diameter 1.590mm - 1.600mm
Bearing: ceramic bearing
Sterilization: The dental drill can be sterilized under a high pressure 135℃ steam

Introduction
The J1 series surgical handpieces feature a secure bur, thus eliminating the risk of accidents.

Features

1. JINME uses unique patented technology to ensure that the bur remains securely fastened during high speed operation.
(Patent number: CN203263556U)

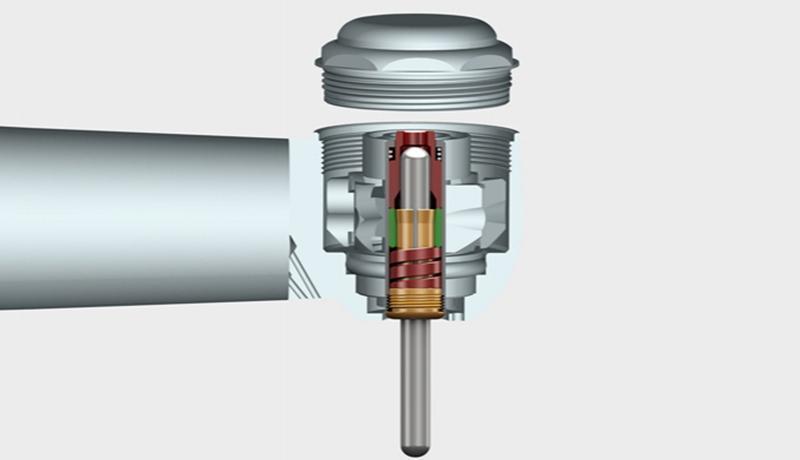

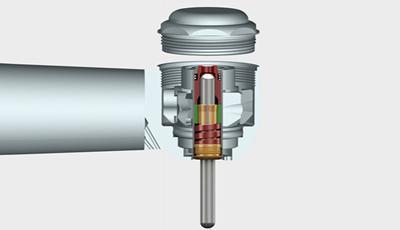

The J1-SU high speed dental handpiece uses an independently researched auto-chuck push button spindle. The spindle features a built-in precision micro spring, which will apply a preload on the chuck when the handpiece rotates at a high speed. The faster the bur rotates, the tighter the spring clamps, which ensures the bur will not drop during the treatment process. After more than 20,000 pressing tests, the handpiece's clamping ability decreased by only 2%, with a service life of more than 3 years.

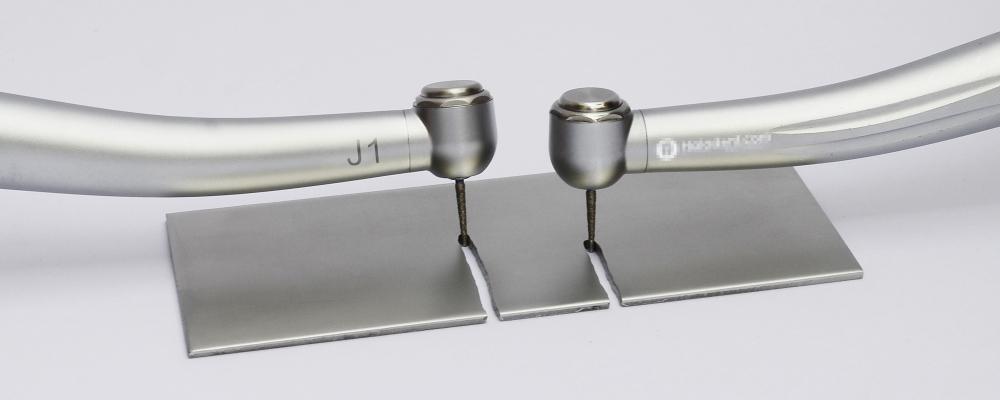

2. Strong Cutting Capability
The J1-SU dental handpiece has a power of 23W, with a pinion that uses a high strength bearing steel material that has been imported from Germany, as well as processing and molding done using high precision German and Japanese CNC machines to ensure the pinion is closer, smoother, and has maximized the transmission rate. The J1 dental handpiece's cutting capability is outstanding when compared to competitor products, and improves dental treatment efficiency while simultaneously shortening the treatment process.

3. Anti-reverse suction system
The J1 handpiece has anti-reverse suction system prevents the suction of blood, viruses, and debris that runs the risk of cross infection, using a negative pressure. This system also protects the bearing from foreign matter and extends the handpiece service life.
