Technical parameters
Max torsion: 80N.cm
Max bur length: 36mm, max bur diameter: Φ4.7mm
Noise: ≤50db
Light source: LED optical fiber
Gear ratio: 20:1
Moving method: 360º rotation
Max bur diameter: Φ4.7mm
Machine head diameter: Φ9.6mm
Radial run-out: ＜0.03mm
Bur changing method: push type bur changing

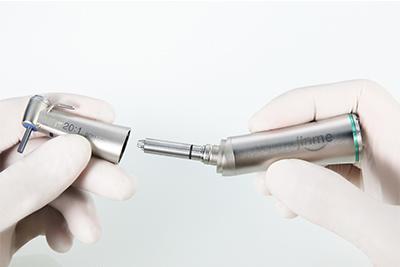

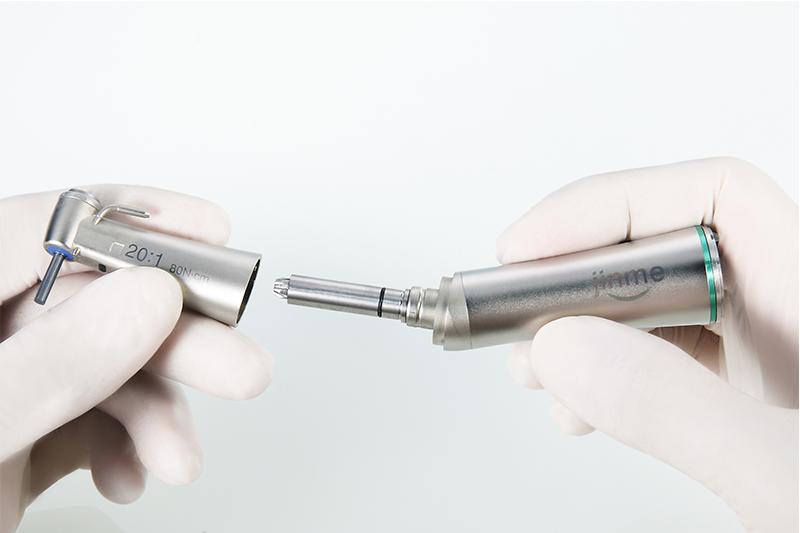

1. The 20:1 variable speed dental implant handpiece adopts detachable and easy cleaning machine head, modular assembling so the assemble and disassemble is convenient and quick. The operation is easy. Besides, the consequent maintenance can be carried out by yourself easily.

2. This dental drill features large torque output which can be up to 80N.cm. The torque of the similar products on the market is generally 55N.M. The ultra high torque output can satisfy the dental treatment requirements.

3. The machine adopts reinforced stainless steel both inside and outside. Besides of the delicate appearance, this also improves the practicability by making the handpiece corrosion resistant, dropping resistant and improving the service life directly.

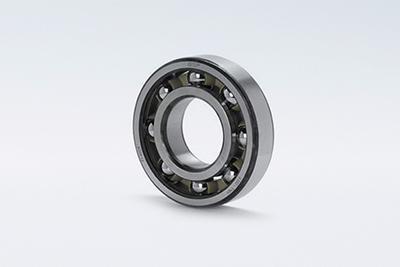

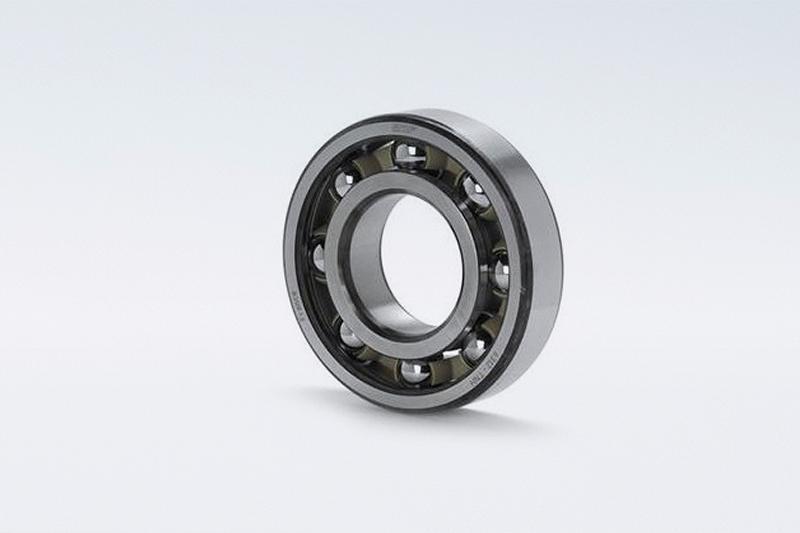

4. The whole machine is equipped with 9 Germany bearing of which the noise is less than 50 dB. This can eliminate the fear of the patients to treatment. The patients can receive treatment in quiet and comfortable environment.

5. The radial run-out is controlled within 0.03mm which can perfectly satisfy the requirements of doctors and technicians for fine operation.

6. The transmission efficiency is up to 80%. This dental drill adopts gear set which is made of superior material by high precision CNC machining craft. It can ensure low noise as well as high transmission efficiency which can be up to 80%.
